Make video games in Google Sheets using only built-in functions

I started making games in Google Sheets after accidentally discovering the "Iterative Calculation" feature built into every spreadsheet (File > Spreadsheet Settings > Calculation). It opened up the ability for cells in my spreadsheets to "see" themselves—which doesn't sound like a lot, but usually cells are only able to reference other cells.

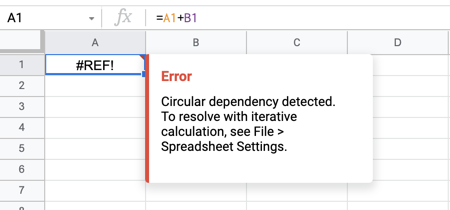

For example, if we had cells A, B, and C, I could tell A to equal B+C, but not A+B or A+C. Cell A, for all intents and purposes, doesn't know its own value unless we turn on Iterative Calculation.

With that setting enabled, we can set A to A+B, A+C, A+1, or any combination of functions involving itself. I could, for example, have a number go up or down by one any time I press a button (made out of a clever arrangement of checkboxes). And once you have that, you have a video game.

But you can't really make a video game in Google Sheets, right?

If you haven't thought much about making a video game before, the important thing to understand is that they're not real.

That is, when you press the jump button, there's not a physical little man named Mario, hoisting himself over some Goombas inside your TV. Instead, there's a table of numbers and variables that keep of Mario's X (horizontal) and Y (vertical) position in the world, what speed he's going, how many coins he has, and a million other things. There's additional code that tells the TV how to represent those numbers in a way that's entertaining, but it's really those numbers calling the shots.

You could say that, in a lot of ways, the brains of a videogame is just a spreadsheet. So why not use Google Sheets to make games?

A note before we start

When you Google "making games with Google Sheets", the top examples will all be very good pieces about using Google Apps Script. Apps Script is a super useful, ultra-powerful tool that lets you write JavaScript to affect your documents and spreadsheets in cool and dynamic ways. I'm a big fan of folks who use Apps Script, but personally I don't want to use it for this kind of project. This is for a few reasons:

  1. It requires granting Apps Script permission to access your spreadsheet, which can hinder share-ability
  2. I really like making things that I can explain to others
  3. Having contraints (like not using Apps Script) is just more fun

So, yes: building everything with only built-in Google Sheets functions and formulas is more difficult, and time-consuming, and the end product will most likely be less exciting. But the process is what makes it worthwhile.

I'm still trying to find an accurate way to describe what keeps me coming back to that process. The best I have so far is that it's like putting together 10,000-piece jigsaw, but it's in 3D, and only you know what the end result looks like, and you're never quite sure if you have all the right pieces. The practice of making something fun and complex with strict constraints is like playing the best puzzle game, and you get to learn stuff along the way.

All of that to say, this is not the best way to make a game, obviously. It's also not the best way to use Google Sheets. But, if you come at it with an open mind and a bit of patience, I think it can be incredibly rewarding.

The bones of a game

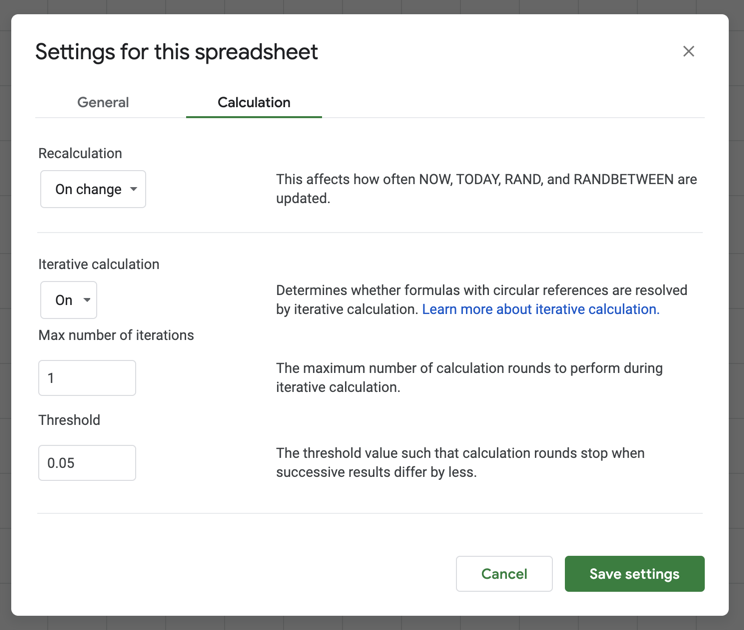

Any time I start a new Google Sheets project now, I turn on Iterative Calculation with "Max. Number of Iterations" set to 1, and make all of the cells into squares. Here's a spreadsheet with those already set for you: Copy my game template spreadsheet ✨

The reason I set "Max. Number of Iterations" to 1 is that I typically only want each formula to check itself once. If you set that number to 2, and have a formula that adds 1 to the current cell, you'd actually be adding 2 to the cell instead. Sometimes that is what you want, though, so I encourage you to play around.

Once I have my blank canvas, I'll set aside at least a few rows each for the following sections, in this order:

  1. Static values that never change, or will only change manually
  2. Checking whether any buttons have been pressed
  3. Information about the on-screen "actors", like the player character or their enemies
  4. A grid that represents the "screen", which references the positions of our actors
  5. The final "screen" that will be shown to the player, where we use images or conditional formatting to show them the actors, and provide buttons to press

The order here is important because Google Sheets calculates each cell in order, going from left to right and top to bottom.

You want the button calculations above your player's information, so that your player's information can reference whether a button has been pressed. Otherwise, they may not react to a button press until after the player has pressed something else. Likewise, you want the screen to go below your player information, otherwise the player may appear to be in the wrong spot.

The first steps

Let's start with using buttons to move a character around a screen.

I'll go through each of the sections I outlined above, and you can copy the final result here .

1. Static values

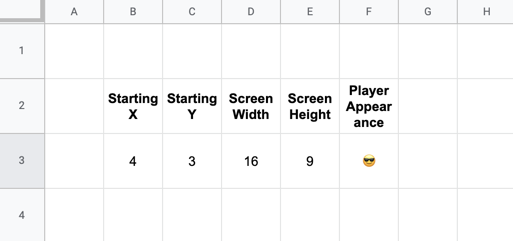

First we'll set the values that **never** change. For this game, we'll make that the player's starting X and Y positions, the width and height of our "screen", and how we want the player character to appear:

Note I'm not worrying about which order these values go in, or using every available space. The important thing here is that these values go above the rest, so that they can always be referenced later on.

If you're making a bigger game, this is a great spot for things like map layouts, item descriptions, or images that you'll want to load before the player starts the game.

2. Buttons

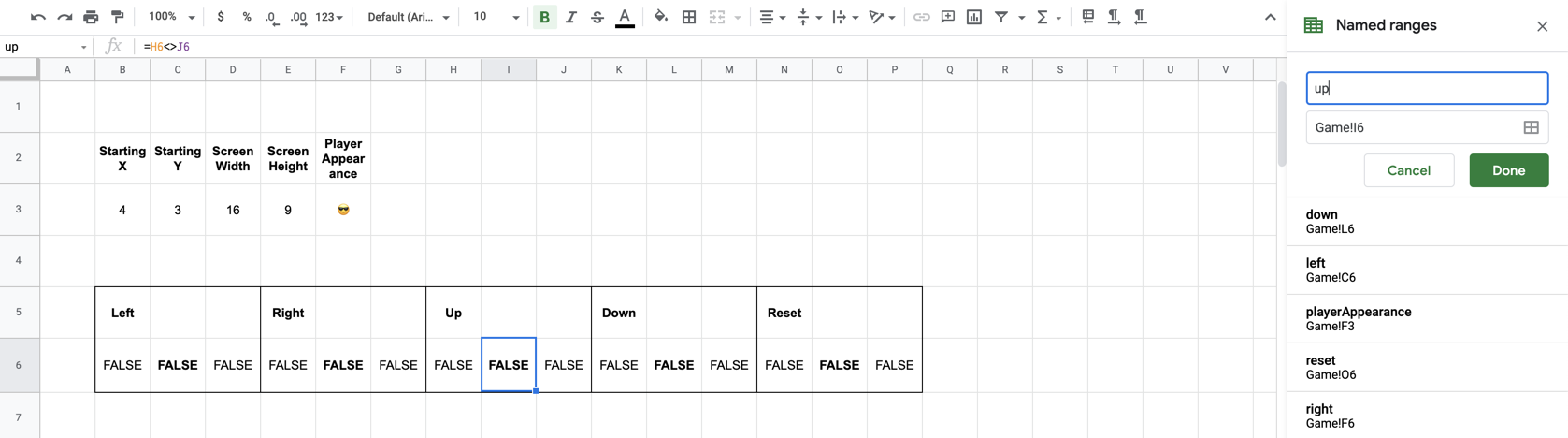

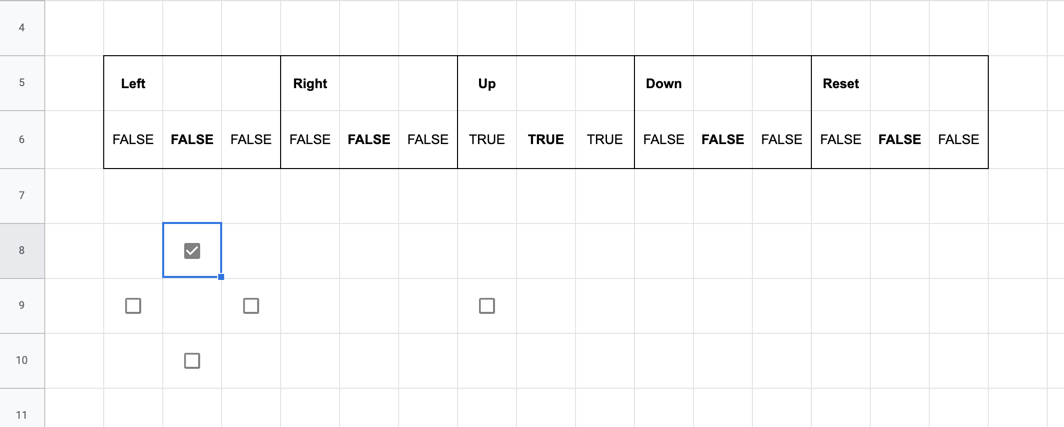

When I talk about "buttons" here, I really just mean checkboxes. In this section, we're going to use formulas to check whether a given checkbox was the last thing to be clicked. I'll also add some checkboxes ( Insert > Checkbox or Tick box) further below, which will get pushed down to the "screen" level in step 5.

I always like to add a "reset" button to my games just in case the player gets stuck or something breaks. This is also a great time to set some named ranges ( Data > Named ranges) which makes it easier to refer to our button presses and static values in the future. Remember, it's the middle true/false value that tells us whether the button was just pressed:

3. Variables

In this section, we'll list everything that might change when the player presses a button. Since we're building a game with just one "actor", that just will be the player's X and Y positions. In each, we'll first check if the "reset" button has been pressed, and return to our static starting values if so. If a different button has been pressed, we'll adjust the value within our screen boundaries.

I've gone ahead and created named ranges called x and y to help keep track of these numbers, and make writing this formula a bit easier. Here's the formula for X:

And the formula for Y:

In each, we return to the starting point if the "reset" button was just clicked, or if the cell is currently set to 0. That's because when we first copy the spreadsheet, or make a change to the formula, it'll default to 0, which can sometimes send our player off the map unexpectedly.

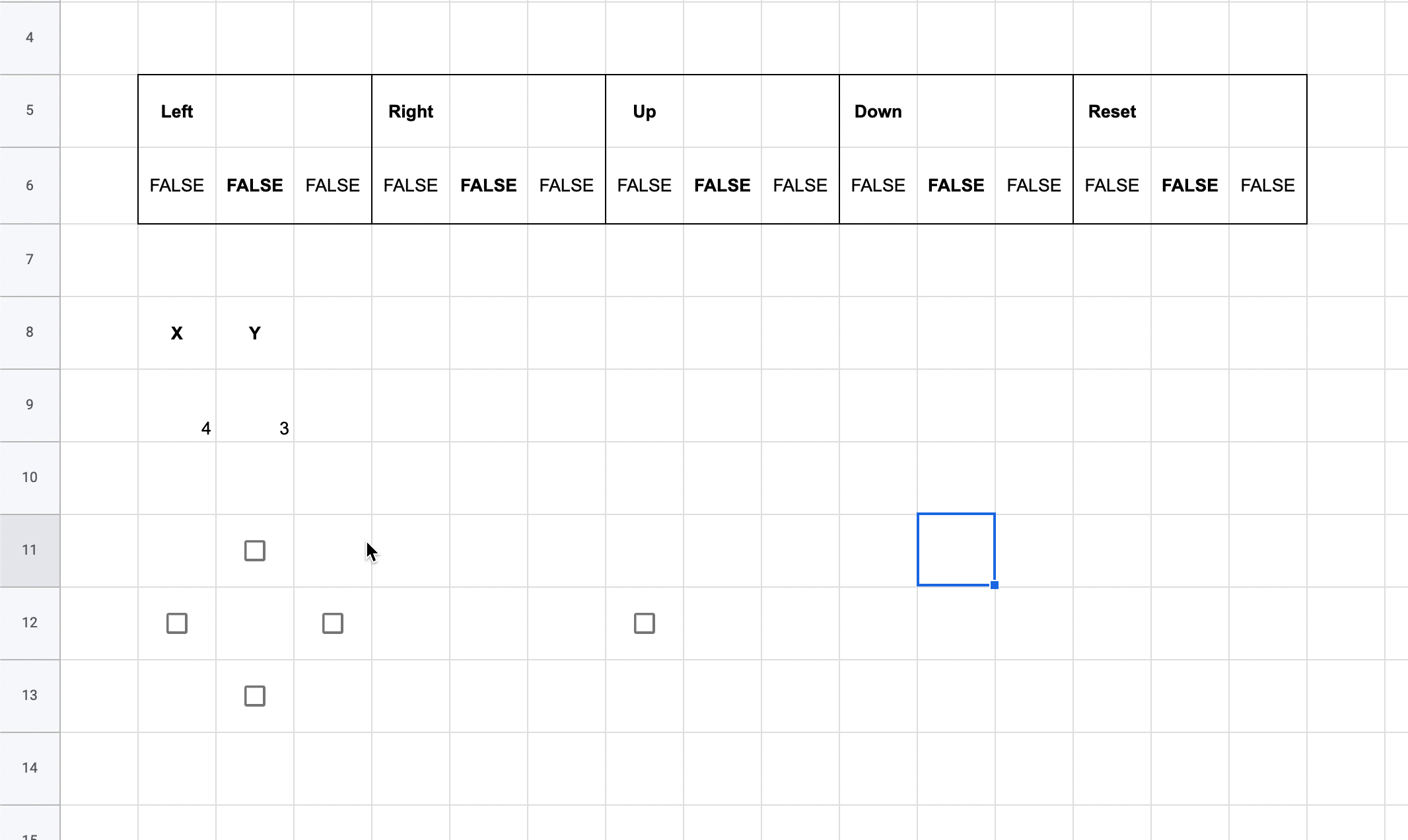

If neither of those apply, we check to see if the player has clicked a directional button, and change the X and Y values by 1 in whichever direction. Going left reduces the X value while going right increases it, and going up reduces the Y value while going down increases it. (In reality, you could switch those around if you want, so that going left increases the X or whatever, but this is how most game-making apps think about it, so I'm sticking to convention.)

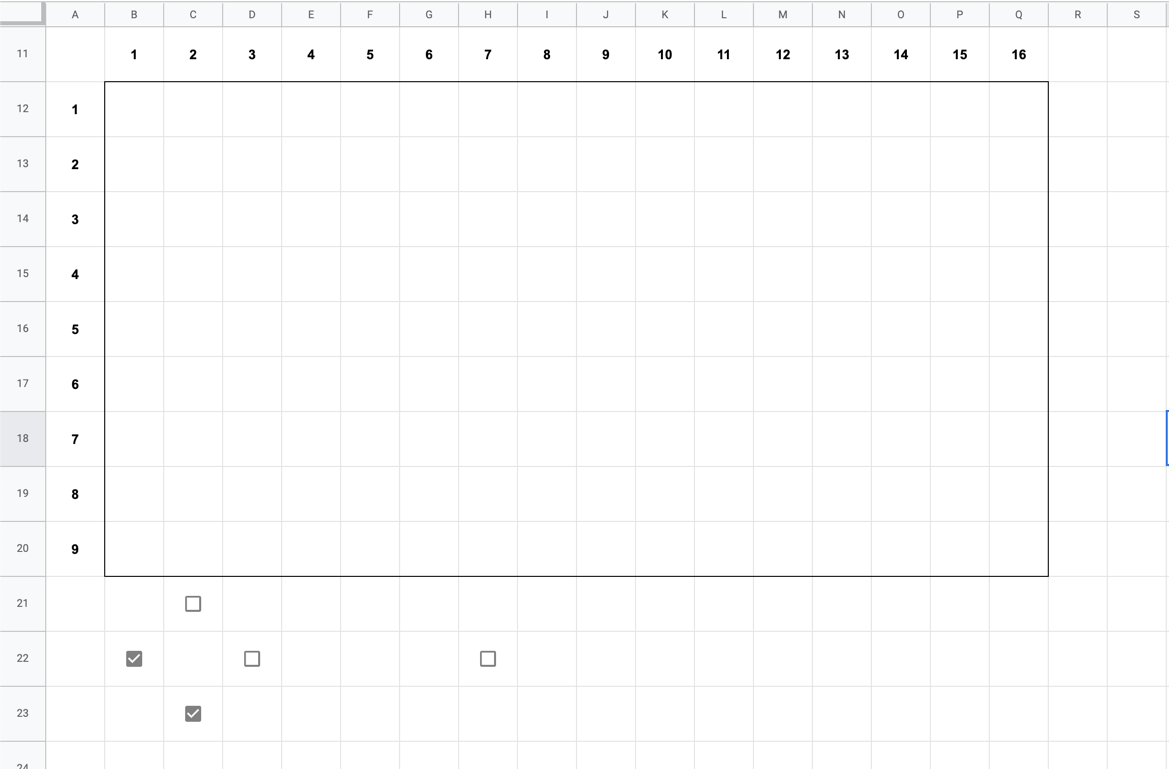

4. The "backstage" screen

Now that we've got buttons that move numbers around, we'll want to start mapping those numbers to a two-dimensional space. To do this, we'll designate a grid that's equal to our screen height and width from Step 1, then number each row and column along the top and left borders.

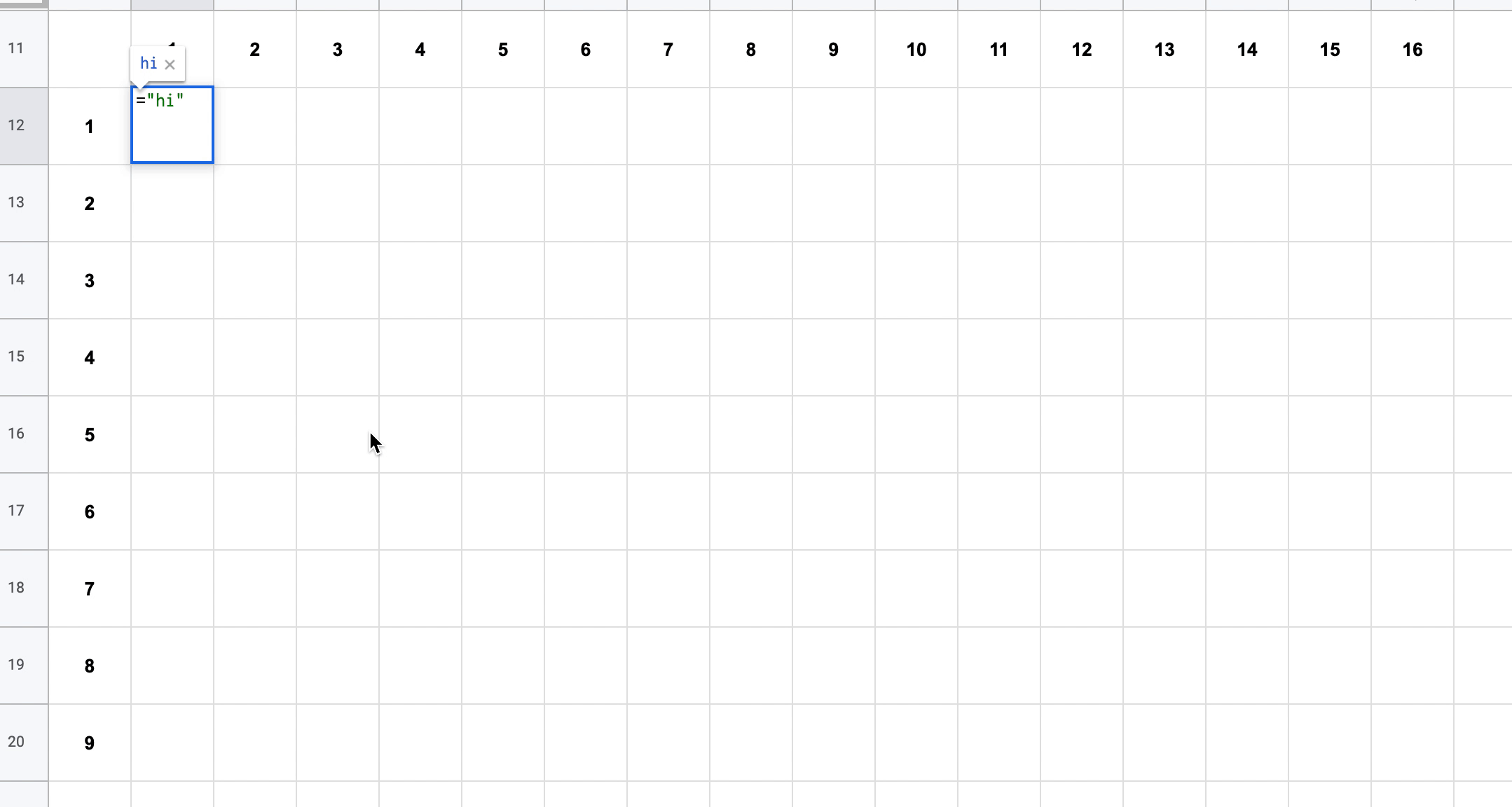

Each cell in this "screen" is going to have the same formula, so I will typically make changes to the top-left cell, then click-and-drag to apply it to all:

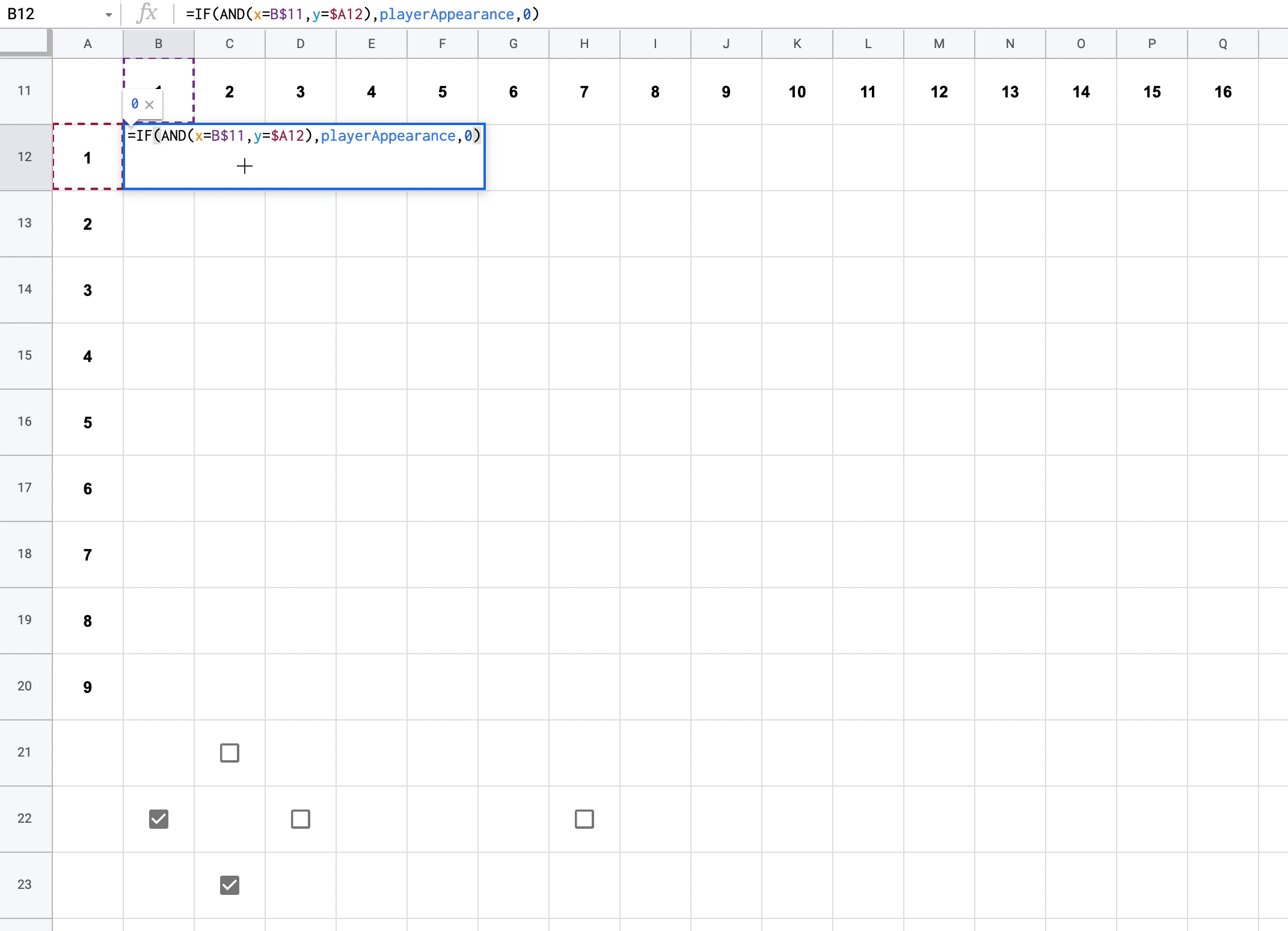

For this game, the formula we're adding is going to check whether the player's X and Y positions match each cell's row and column. If it does, show the "player appearance" value we set earlier. Otherwise, return a 0.

Notice where I added the $ symbol? That keeps the row or column static, even as I copy the formula into other cells. That lets us click-and-drag the formula from one cell to the rest, without breaking anything.

Now you've got a screen for the player to move around! If you wanted to, you could stop here, format the grid to look pretty, and call it quits. However, I prefer to let this section stay ugly, so I'm not afraid to go back and change it later. To do that, we'll add a second "screen" in the next step:

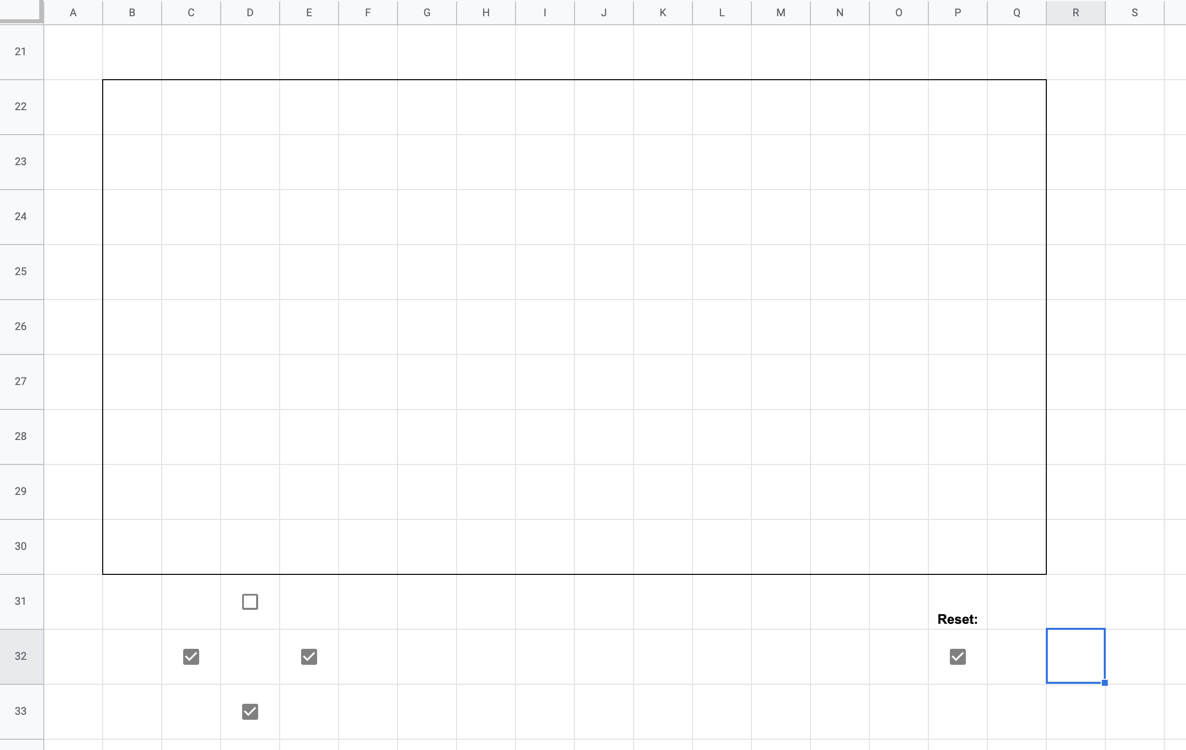

5. The "display" screen

This is the screen that you want your players to see, and the buttons you want them to interact with. To start, we'll designate a grid of the same size as before, leaving off the numbers, and put our buttons right up next to it:

All of the formulas here are really simple, because they're just referencing our work from the last step. In this case, that's literally just checking to see if the corresponding square contains the player:

In more complex games like we'll see in Part 2, this second screen is where we'll do more complex Conditional Formatting, which is the other reason for having two "screen" sections.

For now, let's clean everything by adding a white border to the cells inside the screen, putting a thick border around it, and prettying up the buttons. You can do that by making the font size 100, and setting their text/background colors to slight variations of each other:

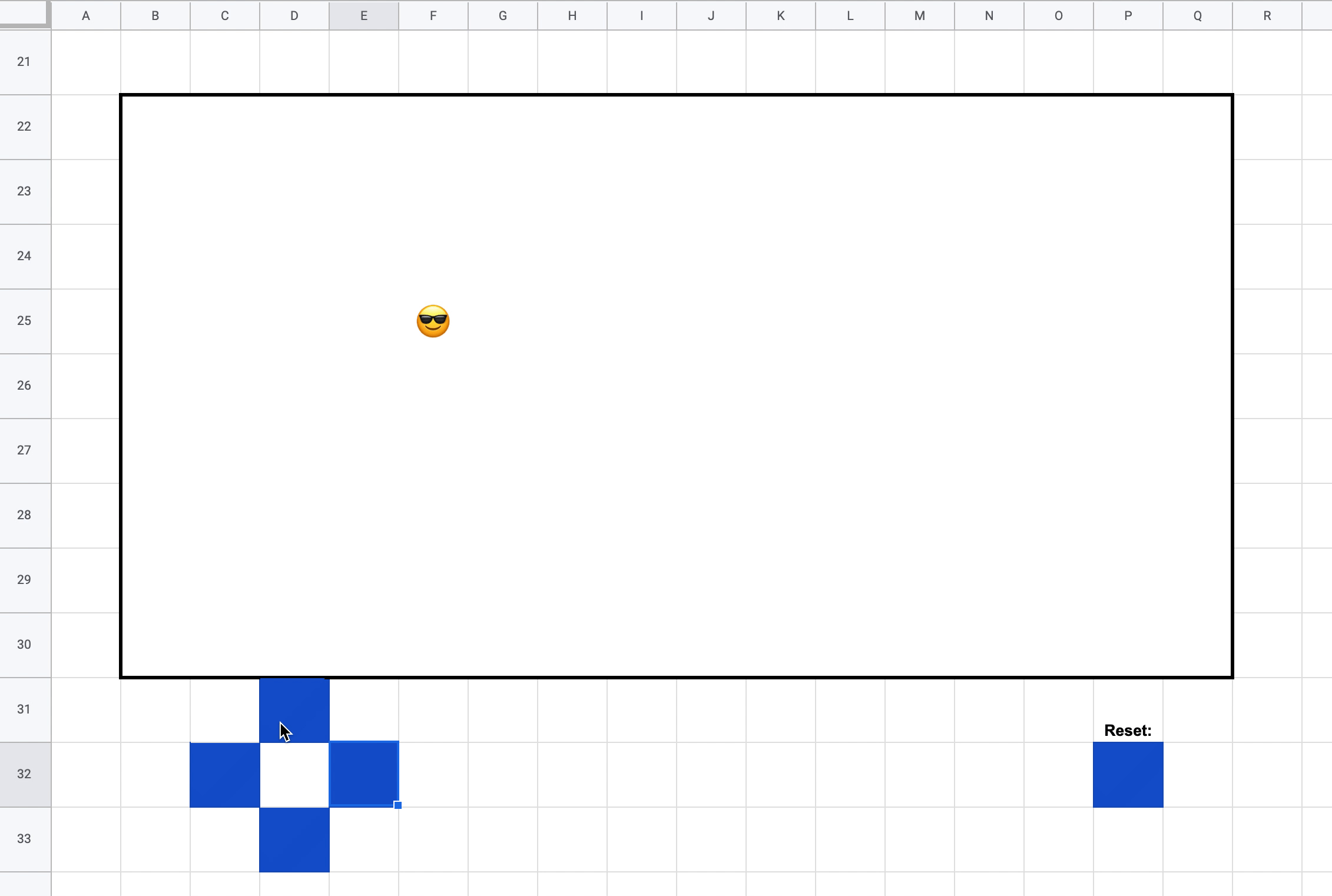

Then, hide any rows or columns that you don't want your players to see, and you've got yourself a working game! Here's a link to my finished example again , so we can compare.

To take this project further, revisit the screen we made in Step 4, and start thinking about what else you might want to appear on the screen:

Here are some examples of games I've made using these ideas:

Part 2: Making Board Games

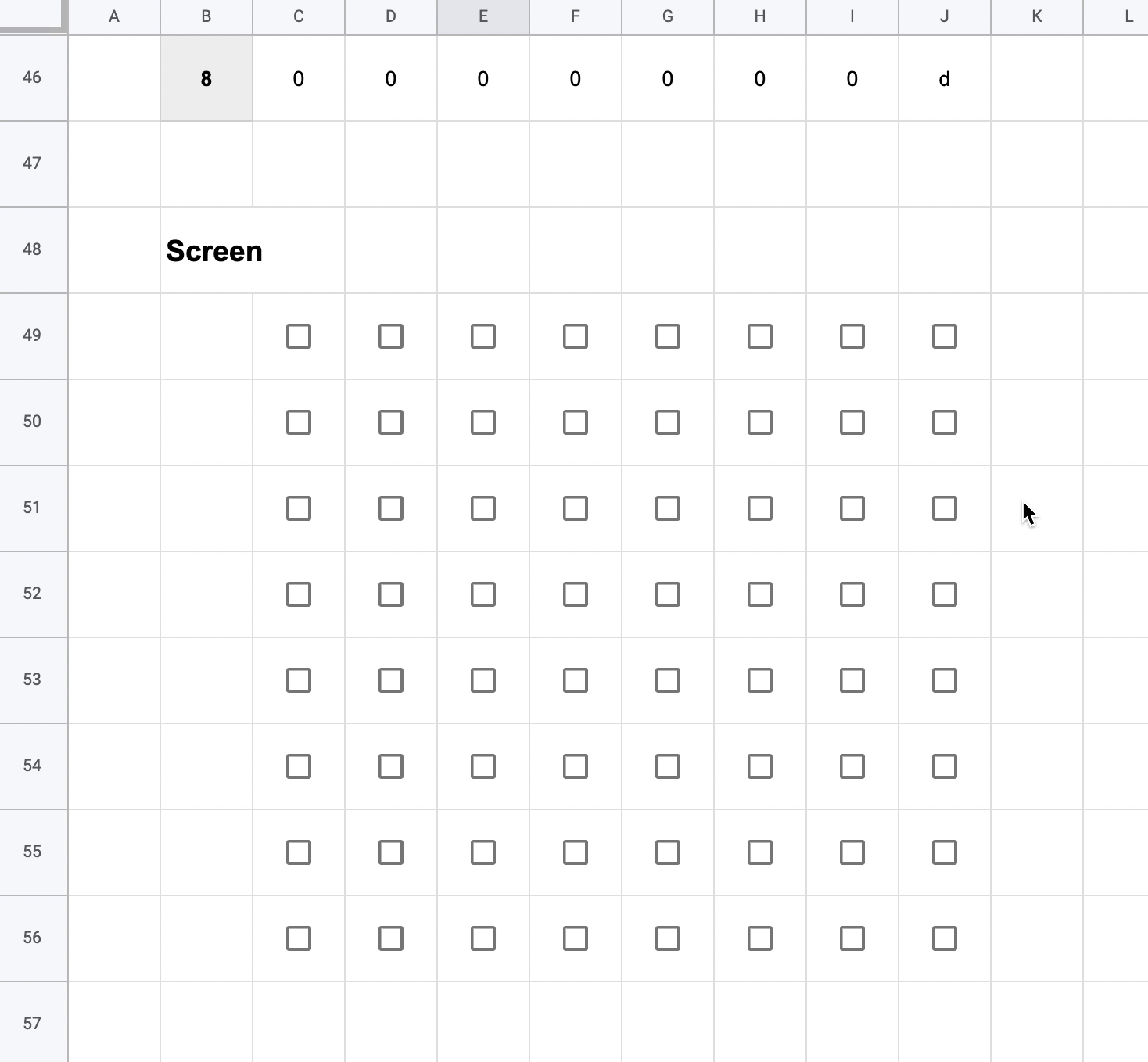

Another benefit of turning checkboxes into buttons is that, if we put them directly on the "screen", we can treat them like pieces on a game board. We're also going to add functions in the buttons section so that we can track where the user is clicking on the board. That screen is going to look a bit weird for a while, and we'll really rely on the "backstage screen" to see where our pieces are, but we'll clean it all up with Conditional Formatting at the end.

Here's a template with an 8x8 board that you can copy to get started!

Any time I reference a cell in guide below, I'll be using that template as a reference, so you can play along!

Picking up the pieces

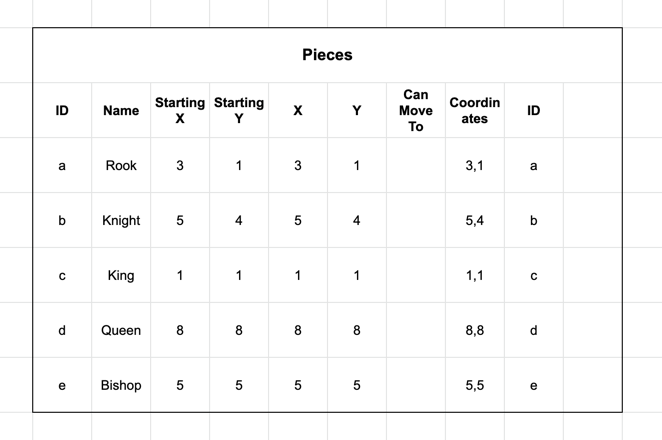

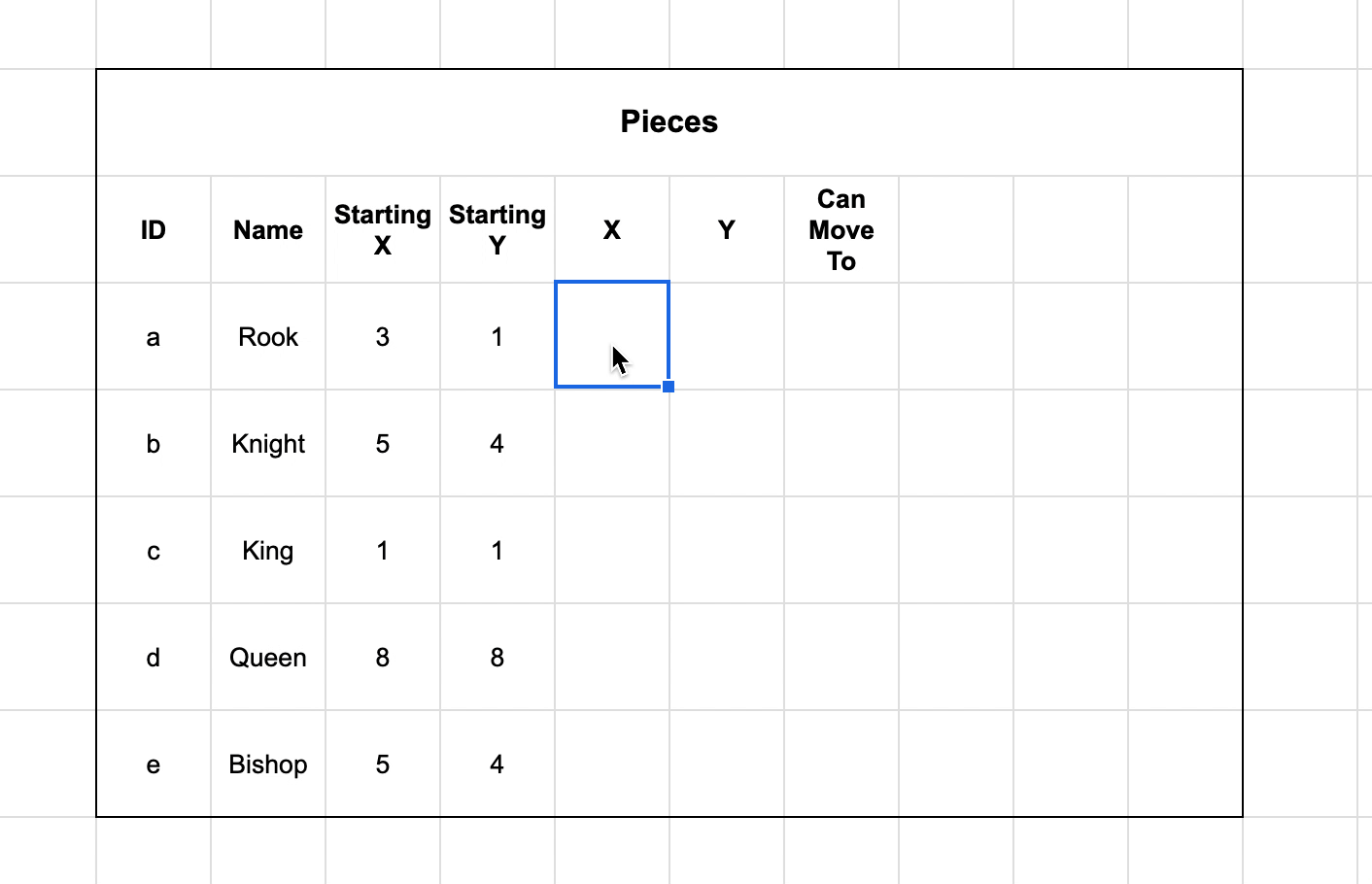

In our variables section, let's write down information about all of the pieces, giving them each a:

While the Starting X and Y are static values that I've written in, the current X and Y will be variable. For now, let's set them to the starting values if the "reset" button (included in the template above) has been clicked:

Because of our layout, you can write that in the first "X" cell, then click-and-drag to apply it to the rest:

Now that we have those set, we can start visualizing them on the board!

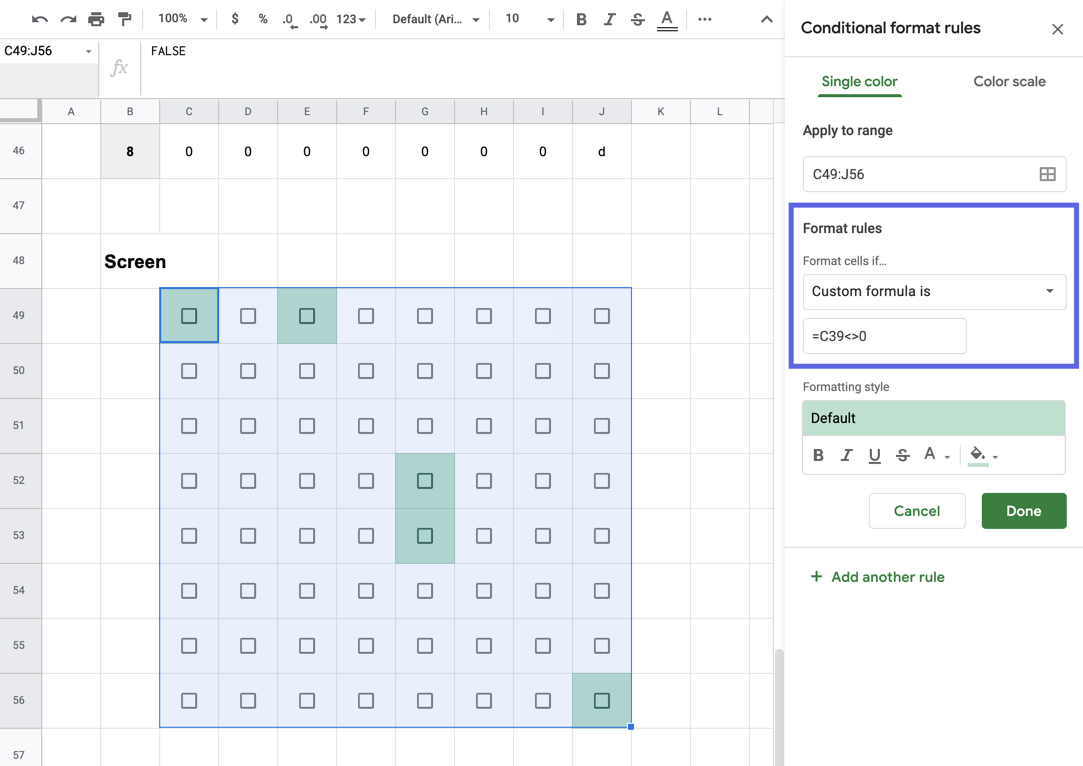

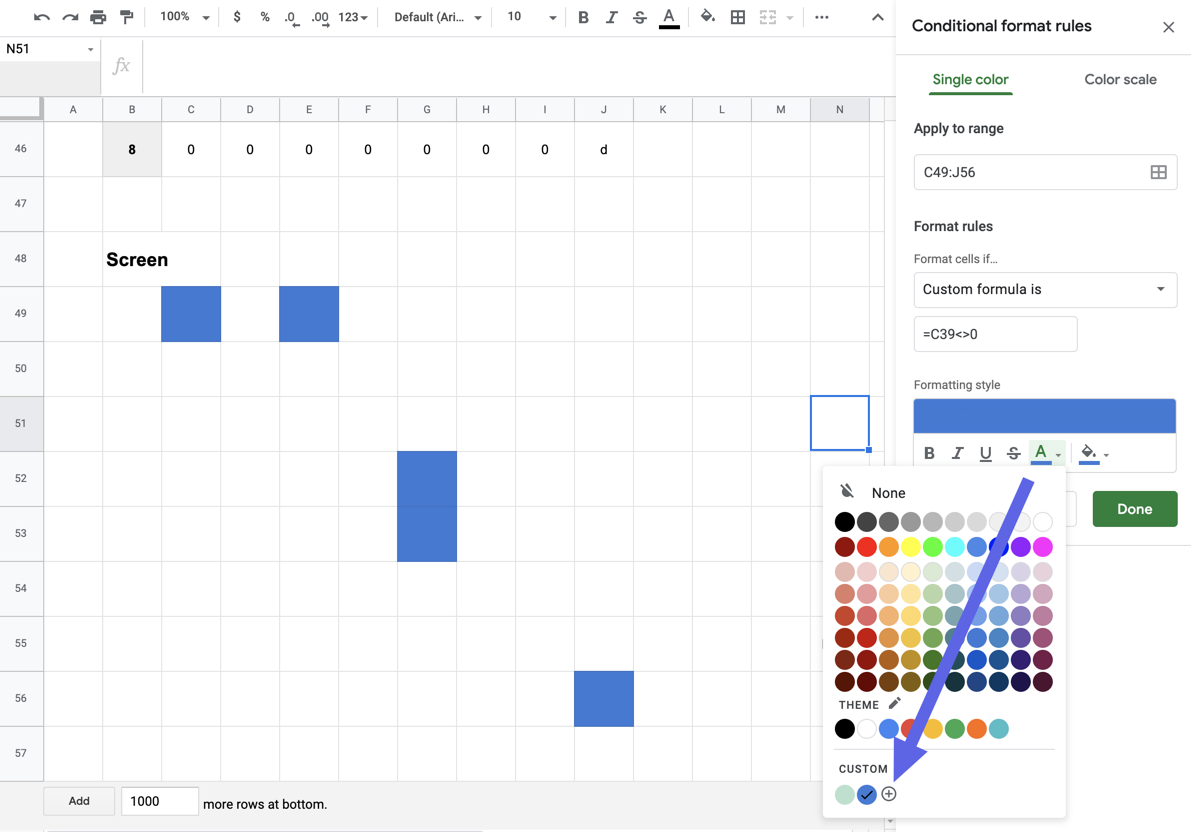

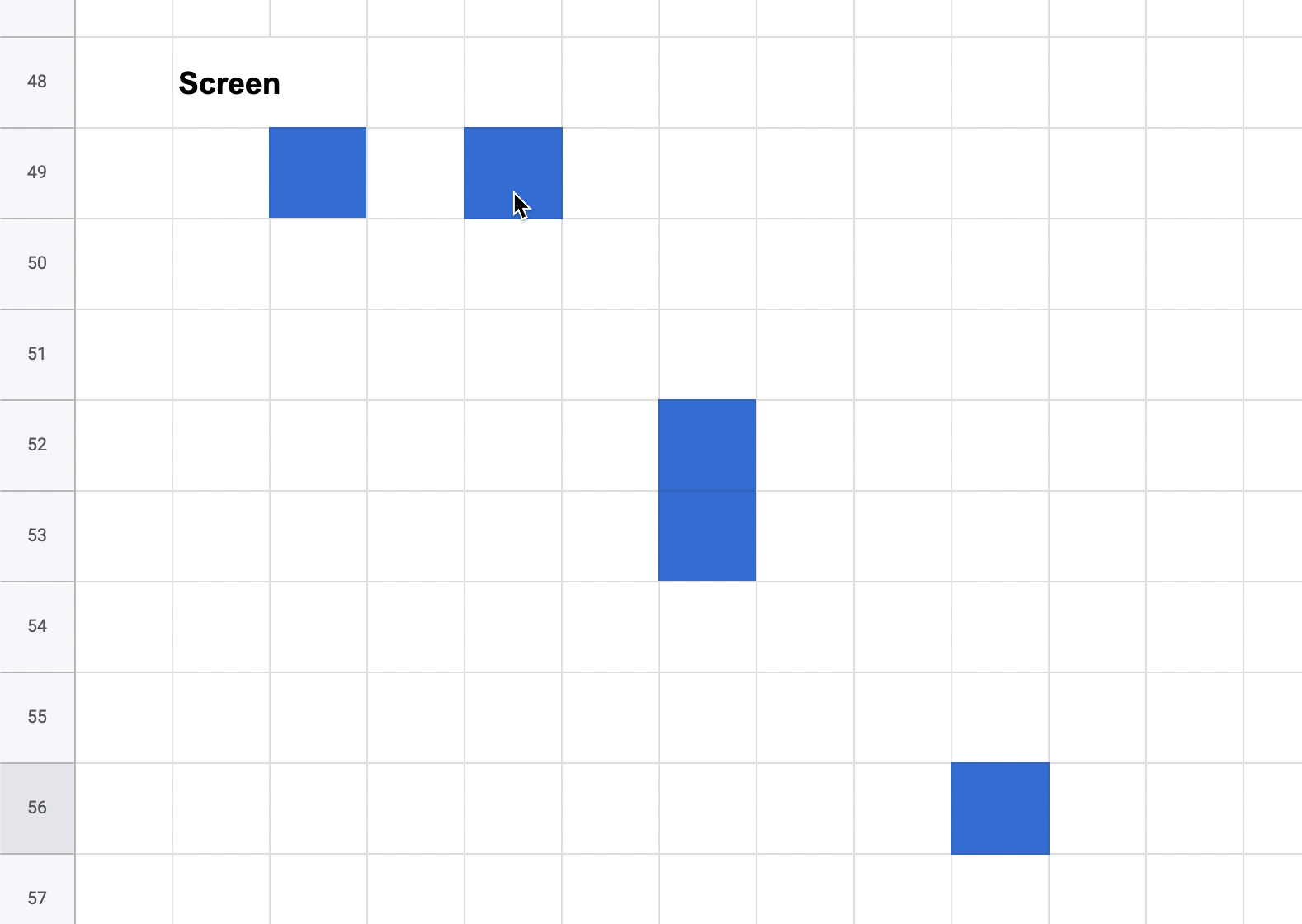

First, click the "reset" button, so that the X and Y values update to match the starting cells. Then, in the "backstage screen", let's add a VLOOKUP formula in each cell. We're specifically going to try and find a match for the Coordinates column in our pieces, then return the ID. We placed those values to the right of the X and Y columns, to make sure we're always using the latest piece positions.

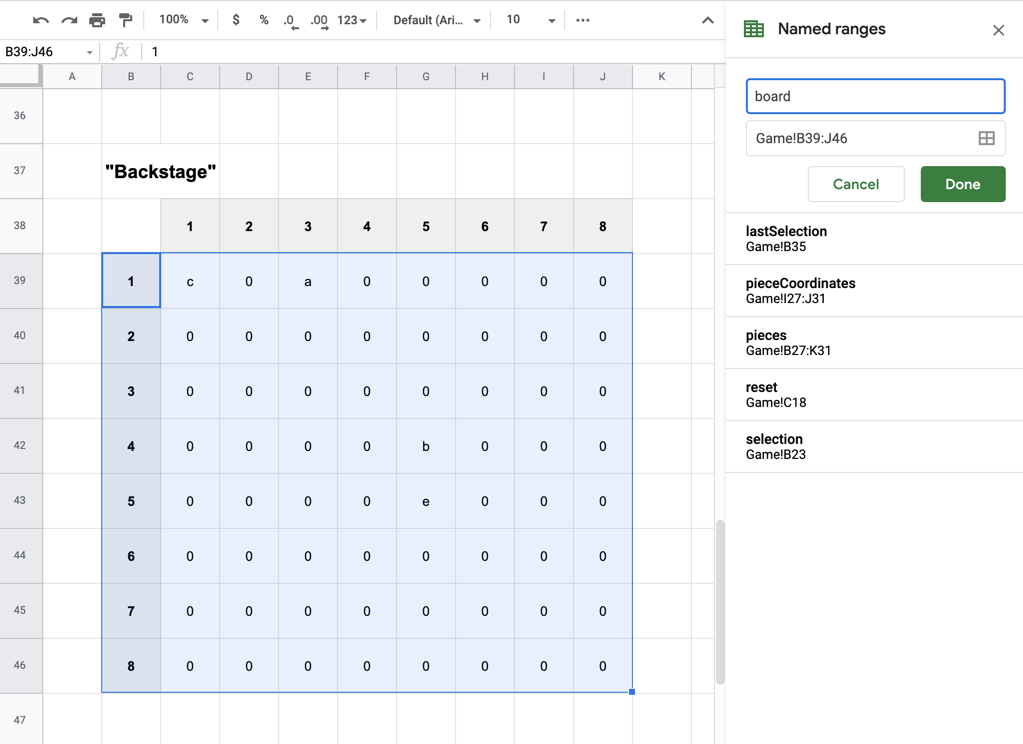

I've added a named range called pieceCoordinates that contains the coordinates and ID columns for our pieces, to help write this VLOOKUP:

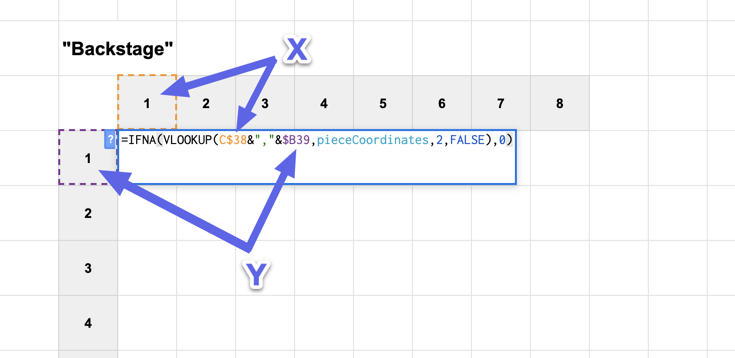

The exact cell references may look slightly different based on your setup, but we're trying to match the numbers above and to the left of the "screen" with the X and Y of a piece:

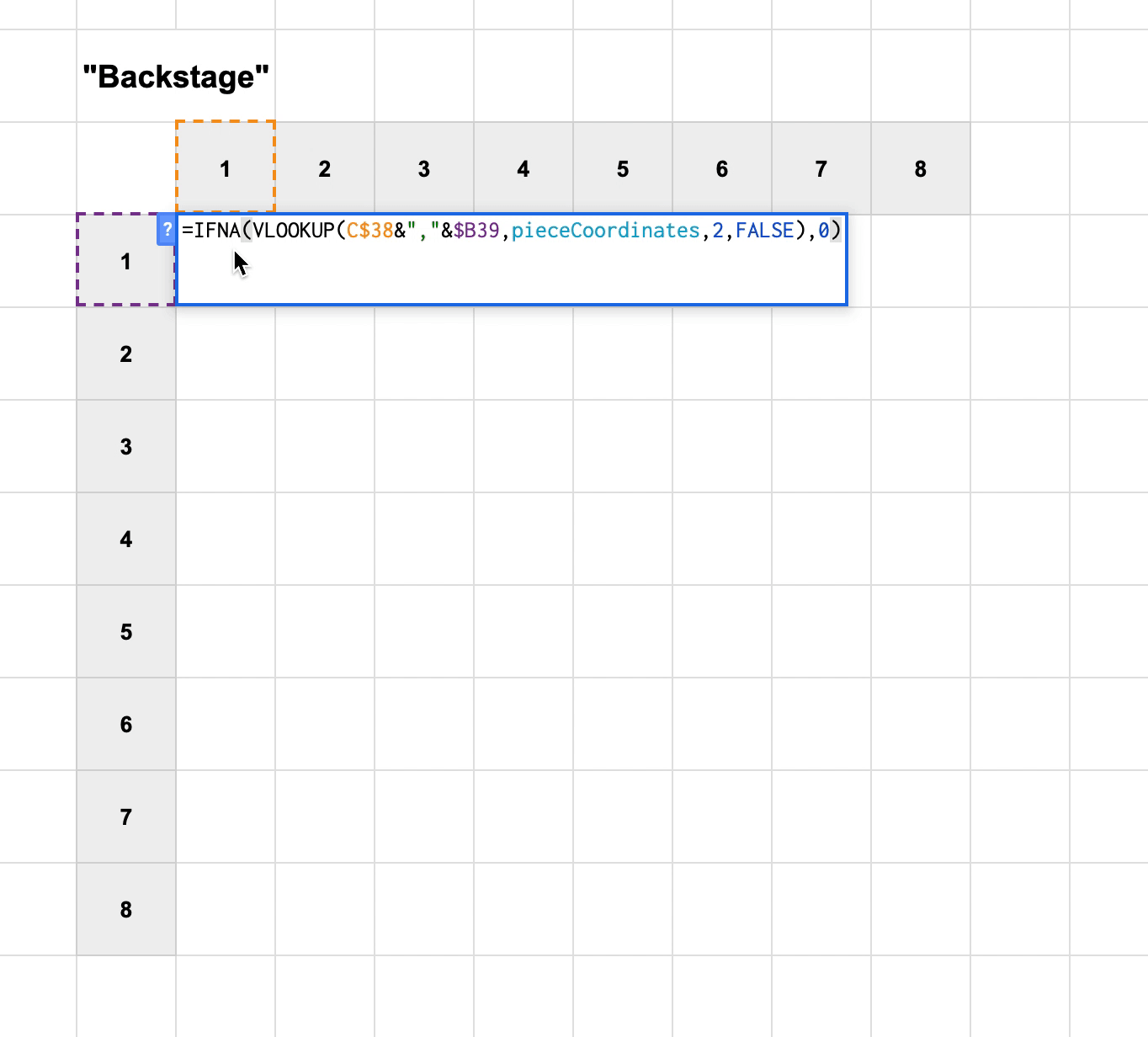

Using the dollar sign also keeps the row or column static in our formula, so you can click-and-drag the single formula across the whole board while ensuring their formulas continue to reference the correct X and Y values:

Note: There are some cases where you'd want to use a QUERY formula instead of VLOOKUP. The reason we're not using it here is that VLOOKUP is a "quicker" function. While QUERY has a lot of great features, it can sometimes cause your spreadsheet to slow down a little, so that not all of your spaces update in time. If you find that you don't like the VLOOKUP method, I encourage you to give QUERY a try!

Selecting pieces

What you should have now is a board that shows where the pieces are, and a "screen" of checkboxes, with calculations that let you see which space was clicked last. To move pieces around the board, we're first going to need to find the X and Y coordinates of that "clicked" space. There's a few ways to do this, but I've come to like this method:

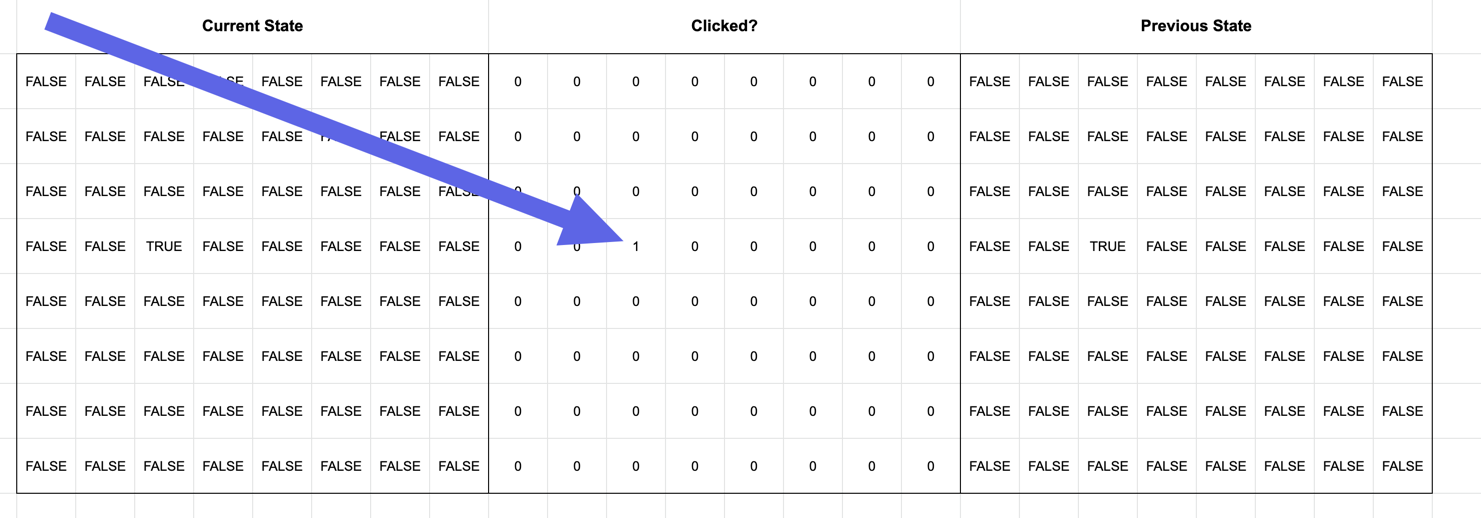

In the button calculation, let's turn the middle section, which checks to see if the left side is not equal to the right (check out my guide on buttons if you're lost), and turn it into either 1s or 0s. You can do that really quickly with the N formula, which turns TRUE into 1 and FALSE into 0. If you're using this template , that formula is already added! This means that the most recent space the user has interacted with will show a 1, while the rest will show a 0.

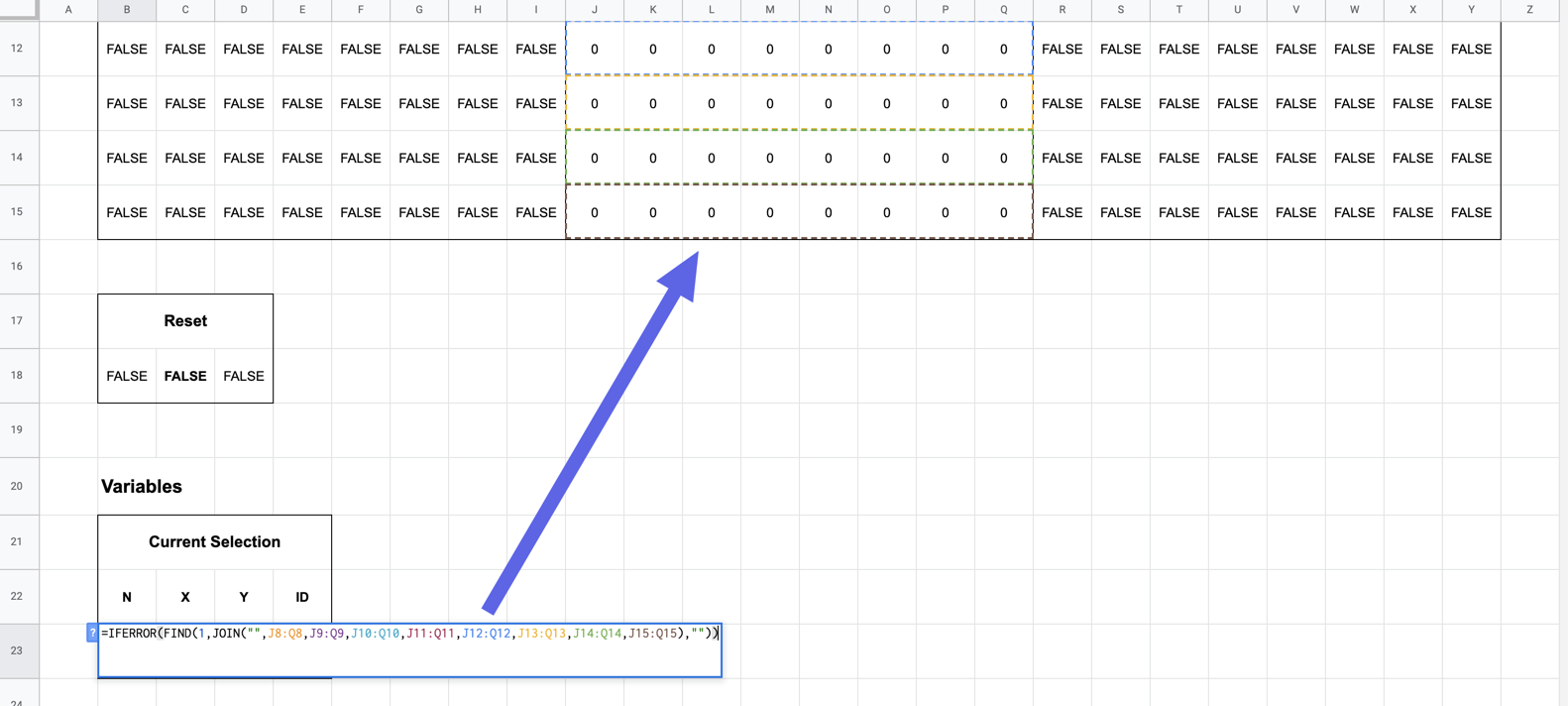

And we can find the position of that space by JOINing the rows together, and FINDing the first "1". If none are found, let's return a blank instead:

"But Tyler," you may be thinking, "That only gives us a single number, not X and Y coordinates." And you would be right to think that! The number we see now is where the piece would be if we took the rows out of the board, and arranged them all in a straight line. To turn that back into our two-dimensional board, we can use some very special math.

To find the X position, we'll want to use the MOD (modulus) formula. This gives us the remainder left over when we divide two numbers. If we get the modulus of our new "selection" number and the width of our board, the result will be either the piece's X position on the board, or 0. If it's 0, that means we're on the right-hand side of the board, and should use the board's width instead. I've gone ahead and saved a named range of the selection called selection, and here's what that looks like with our 8x8 example board:

Our calculation for Y is much simpler, as we just want to divide the selection number by the board width, and use CEILING to round up:

Now we know exactly where the user is clicking on the board! And, because of that, we can learn which piece they're clicking on. To do that, let's add a QUERY formula that looks for any piece that matches the X and Y position of our latest selection. I've added a named range for the pieces to help us locate that:

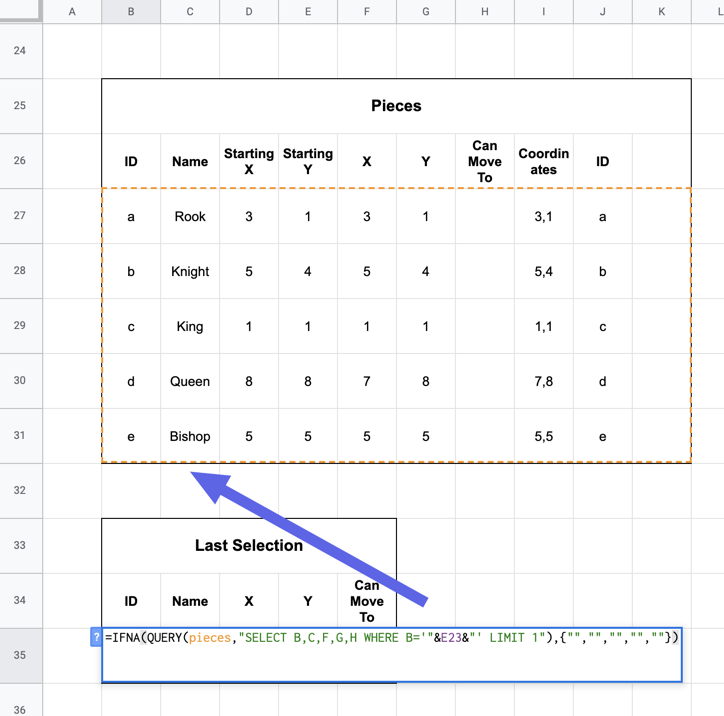

Now we'll want to keep track of which piece we selected previously, so that we can see if that piece needs to move the next time the user clicks on the board. Below your piece information, add a new space for the previously selected piece. We'll use effectively the same QUERY formula as up above, but grab the piece ID, Name, X, Y, and Can Move To columns. This way, when our pieces are figuring out whether they need to move, they can look here to see if they were the most recently-selected piece.

Using that, we can go back through our X and Y columns in the `pieces` range, and update them to see whether that piece was selected previously, and if so, update the X and Y to match the new selection:

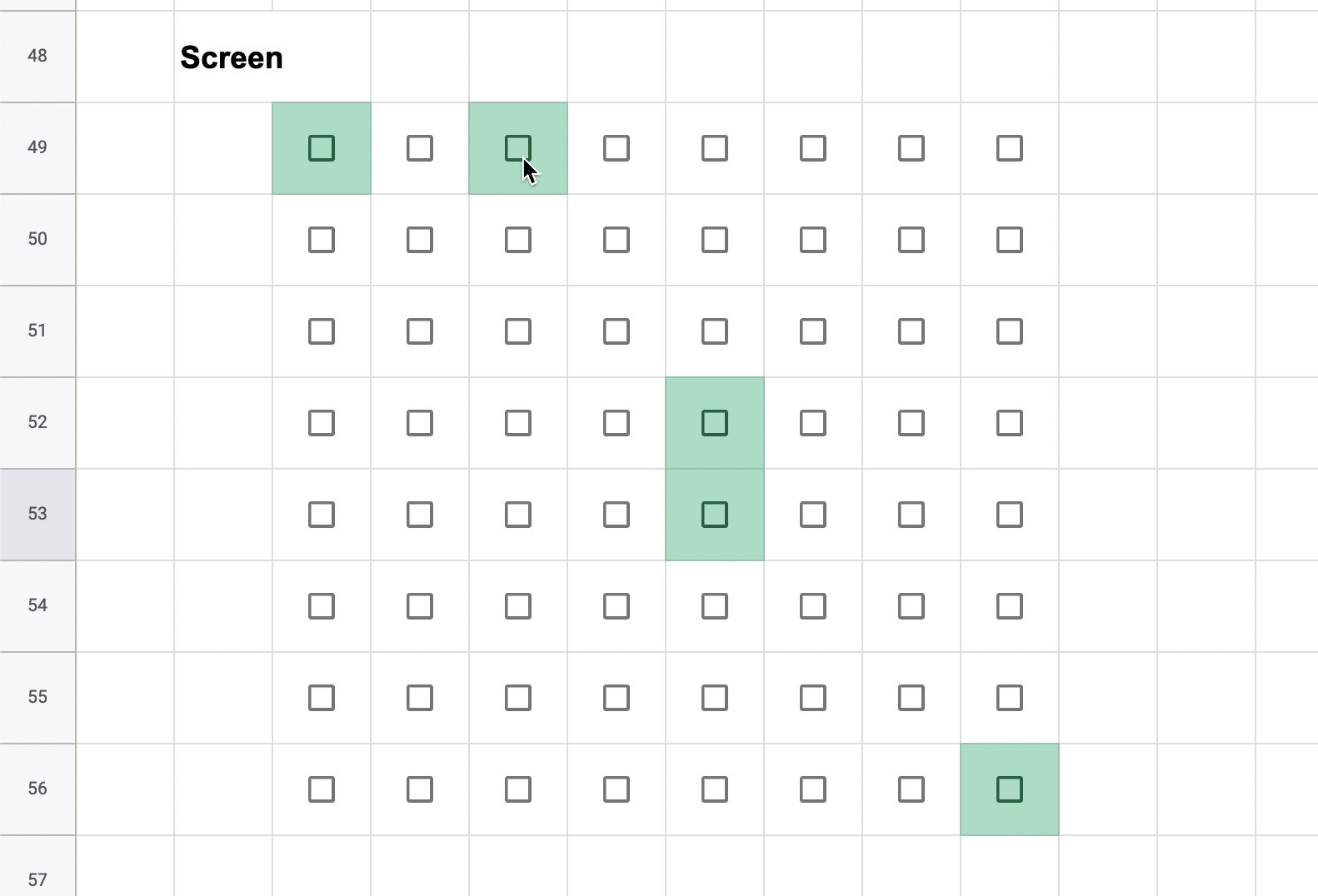

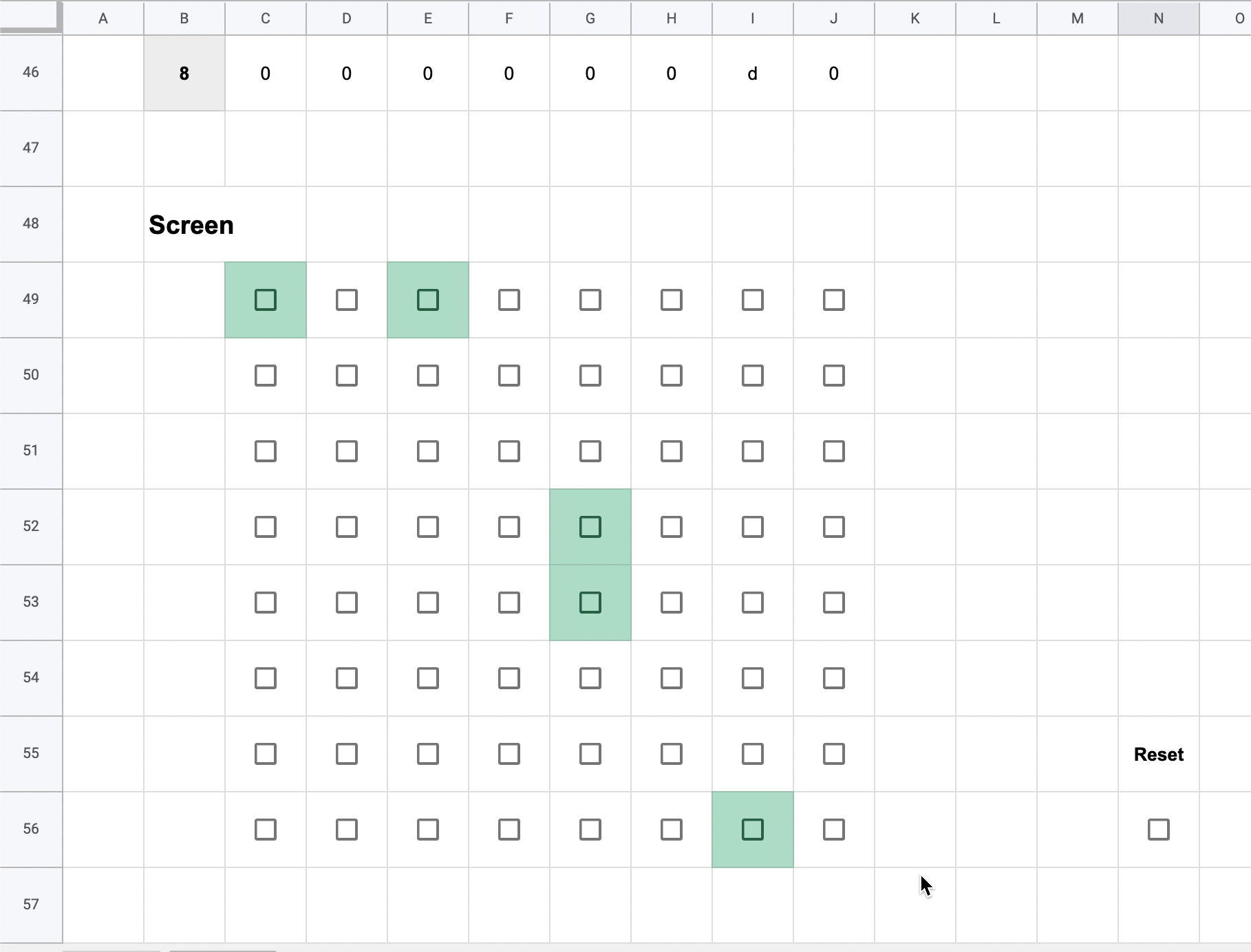

Now if we select a piece on the screen, then select another space, the piece will move! I added a little bit of conditional formating here to help make it more obvious:

Determining where pieces can move

After completing the last step, we can move a piece anywhere on the board, including on top of other pieces. This is great if you're playing something free-form, or keeping track of your Dungeons & Dragons characters virtually, but not so great if you want to play something with, you know, rules. In this section, we're going to tell each piece where it can move to, and restrict them to just those spaces.

This section takes a lot of patience and nesting IF statements. If you've been reading this post straight through, I'd recommend taking this opportunity to stretch and get a drink of water!

In the pieces range that we set aside, we've left the Can Move To column blank so far. That's because we're going to write formulas that take the current X and Y position of each piece, then determine rules that dictate where each piece can go. Based on those rules, we want a list of coordinates, listing each square the piece can move to.

Example: Let's say we have a piece that can move one space in any orthogonal direction (up, down, left, right). If it is currently at 2,2, we would want the "Can Move To" value for that piece to look something like this:

That list contains the X and Y values of a space the piece can move to, with each pair separated by a semicolon (or any character of your choice). To achieve that result, we're first going to create a new named range of our "backstage" screen, including the numbers on the left, and call it board:

That's going to let us refer to spaces on the board in the next step, where we write a series of IF formulas that check the current piece, and see if the spaces it wants to move to are empty, to build out that list. The complexity of this can vary depending on what kind of game you're making. For example: in checkers, all of the pieces have the same rules for movement, but in chess they vary based on the type of piece. To help illustrate this, I'm going to write out the functions for two chess pieces: the knight and the rook.

Example 1: The Knight

In chess, the knight can move two spaces in any orthogonal direction, turn 90 degrees, then move one space in that direction. It can also "jump" over other pieces, meaning it won't matter if another piece gets in the way. Puzzles like "The Knight's Tour" help illustrate its versatility really well. Because the knight doesn't care about other pieces, it's one of the simpler examples for our purposes. What we're going to do is write a series of IF statements that check to see whether a destination space is empty, and return the X,Y coordinates of that space if it is. We'll then use the `&` to concatenate all of the results into a list of coordinates.

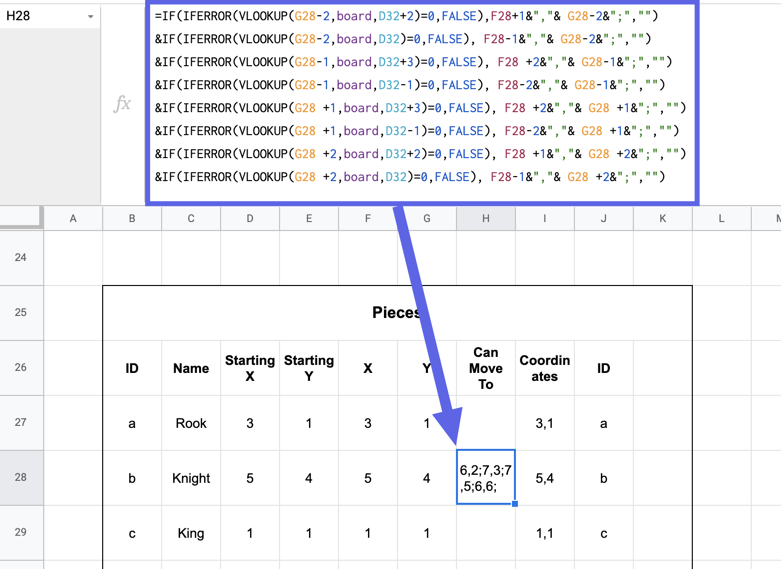

Using our example template, I have the knight's X and Y positions in cells F28 and G28, respectively. Here's the formula for checking just one destination that is two spaces up and one space to the right of the piece's current position:

A few things to note there:

Using ampersands, we can concatenate that formula with 7 more just like it, to look at all of the spaces a knight might move to:

To make this easier to read in Google Sheets, I like to add line returns within the formula, which you can do with alt + enter.

When we run this formula in our sheet, the list will update itself to match the spaces that the knight can move to, no matter where it is on the board:

Example 2: The Rook

The rook is another relatively straightforward piece, as it can only move up, down, left, or right. However, it can move as many spaces as it wants unless there is another piece in the way. This means that to determine where it can move, we need to look at each space in a certain direction, check if it is free, and stop if it is not. This is where we get into nested IF formulas! Here is an example for the rook in my example board, which has its X and Y at cells F27 and G27, to check the two spaces to the right of it:

Using this method, we check to see if the space to the piece's immediate right is free. If it is, we go on to check if the space to the right of that is free, and so on. We keep adding to that list as far down as we want to go, and as soon as one IF runs into a piece or the edge of the board, the formula stops.

So far so good, right? OK, buckle in. Here's what it looks like when we check eight spaces in each direction the rook can go:

Whew. All things considered, that actually isn't that bad. In Spreadsheet Tactics , my turn-based tactics game, I wanted to account for walls and moving around corners, so each piece has 125 nested IF formulas.

Restricting movement

Now that we know where our pieces can move to, we want to update the formulas in our X and Y columns, so that they update only if:

We already have the first part taken care of from earlier. Here's what that formula looks like right now for the rook:

To only let the rook move if they "Can Move To" the space, let's add an AND and FIND formula:

That way, if I try to move the rook diagonally... I can't.

Spend some time writing rules for where all of your pieces can go, and you've got 90% of a real working board game!

Making it look good

The final 10% here is the aesthetics, and, I know. It's a spreadsheet. There's only so much we can do. But! We're going to do our best. The name of the game here is Conditional Formatting, and we're going to use it to color in the pieces and the spaces they can move it to. You may have done this already to point out which spaces have pieces, using a formula that checks whether the corresponding "backstage" space is not 0:

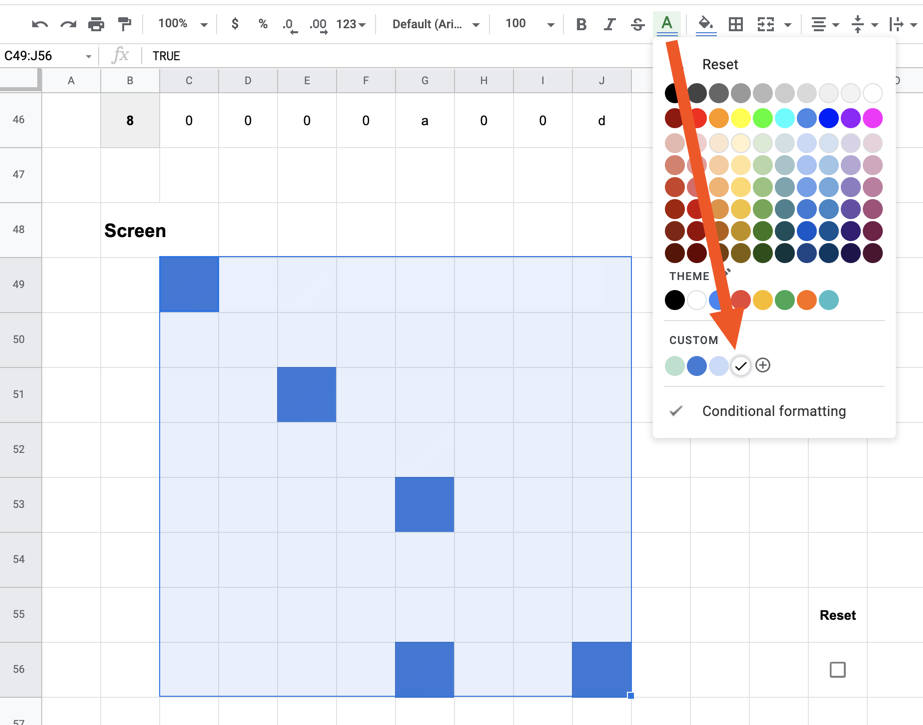

We can hide the checkboxes by setting their font size to 100, and setting the colors to slight variations of each other. As an example, I'm using the custom option to set the background to #3c78d8 and the font color to #3d79d9:

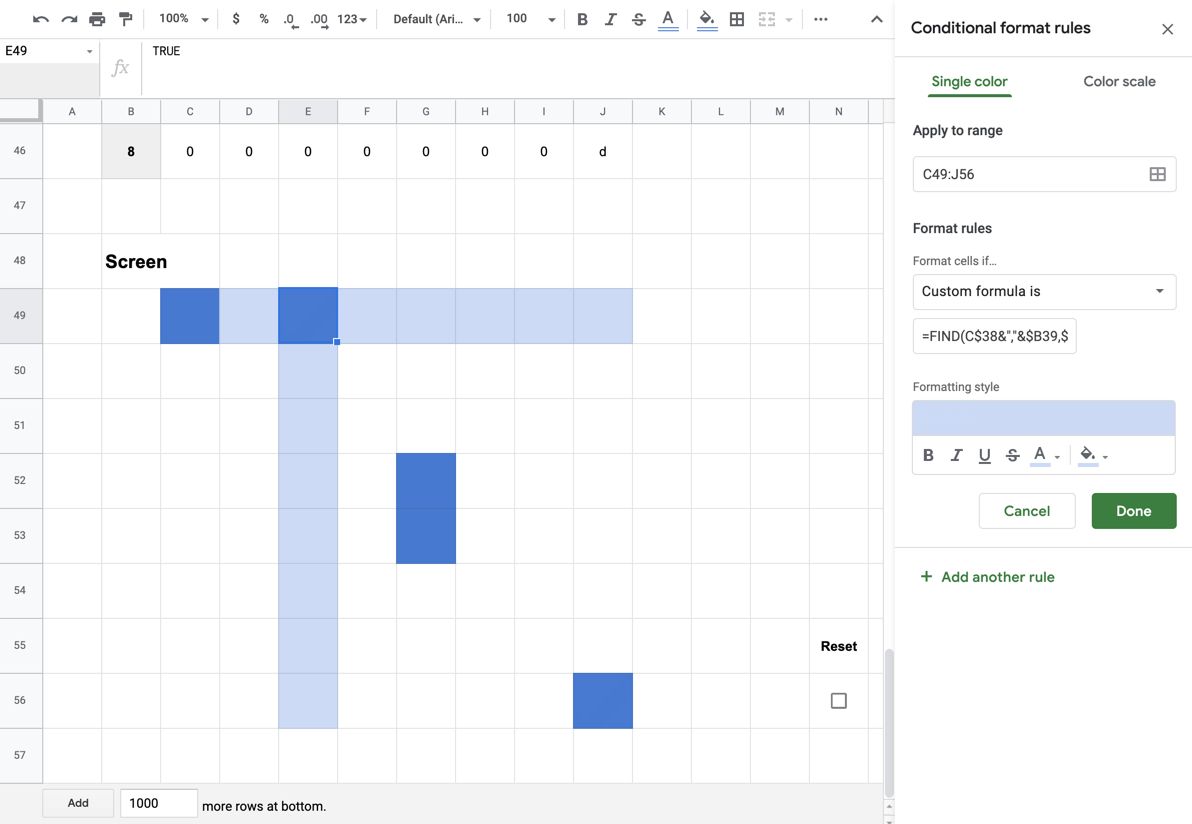

To highlight spaces the piece can move to, we'll revisit the FIND formula that restricts each piece's movement, and compare the X and Y of the corresponding "backstage" piece against the current selection's "Can Move To" list:

We can use a lighter color to point those out:

Now when we click on a piece, we can see where it can move to, and move it there!

To hide the spaces you've clicked on previously, set the whole board to #fefefe and #ffffff:

Add a border around the board and hide any rows that you don't want the player to see, and you're ready to go! Here's a copy of my example, with the rook and knight ready to go.

Taking it further

Now that you've got pieces moving around the board successfully, here are some ideas you can explore on your way towards building a full game:

Here are some things I've made using those ideas!
